ROLL-IN BLAST CHILLER/FREEZER 120/72 KG/CYCLE PRESET FOR REMOTE COOLING UNIT



ROLL-IN BLAST CHILLER/FREEZER 120/72 KG/CYCLE PRESET FOR REMOTE COOLING UNIT

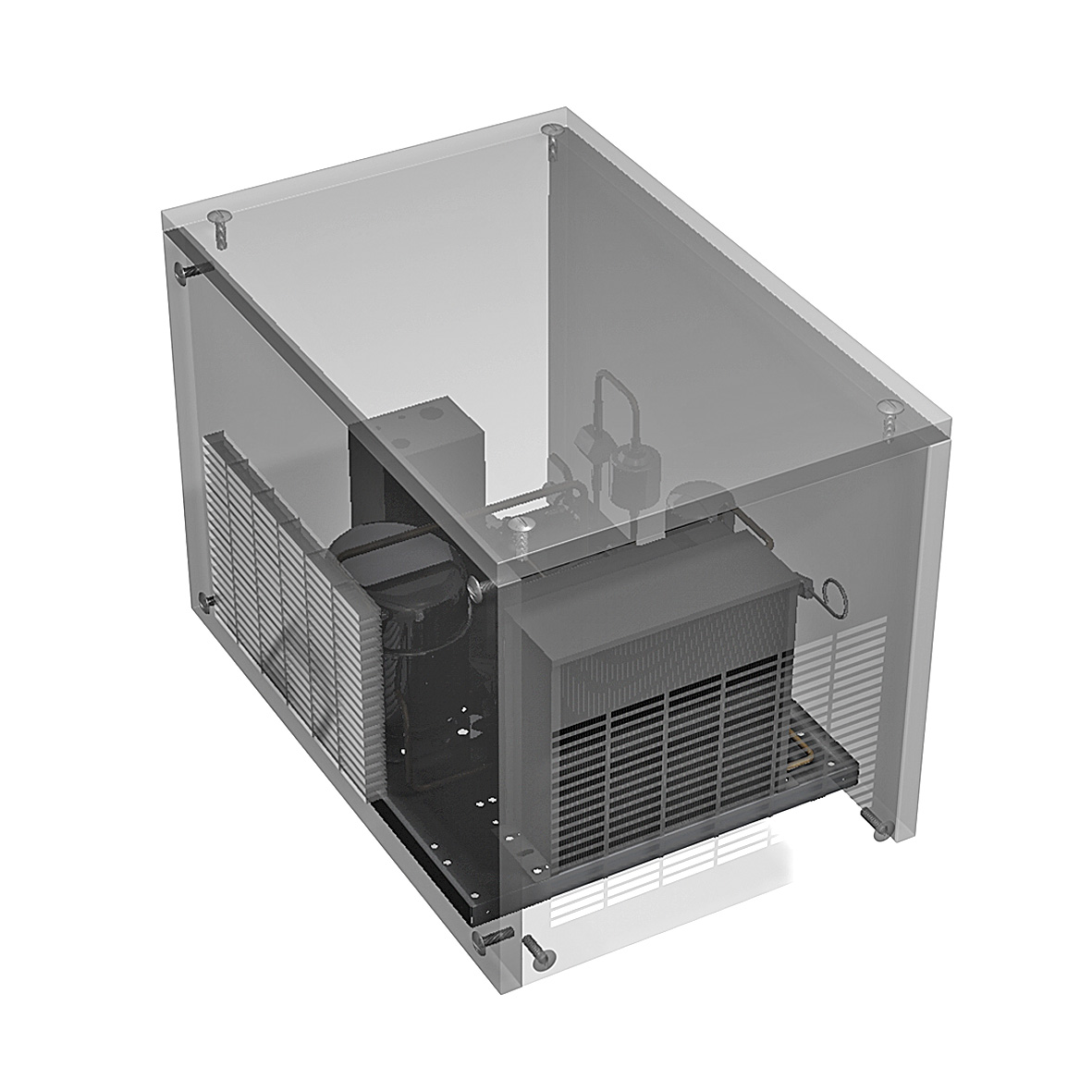

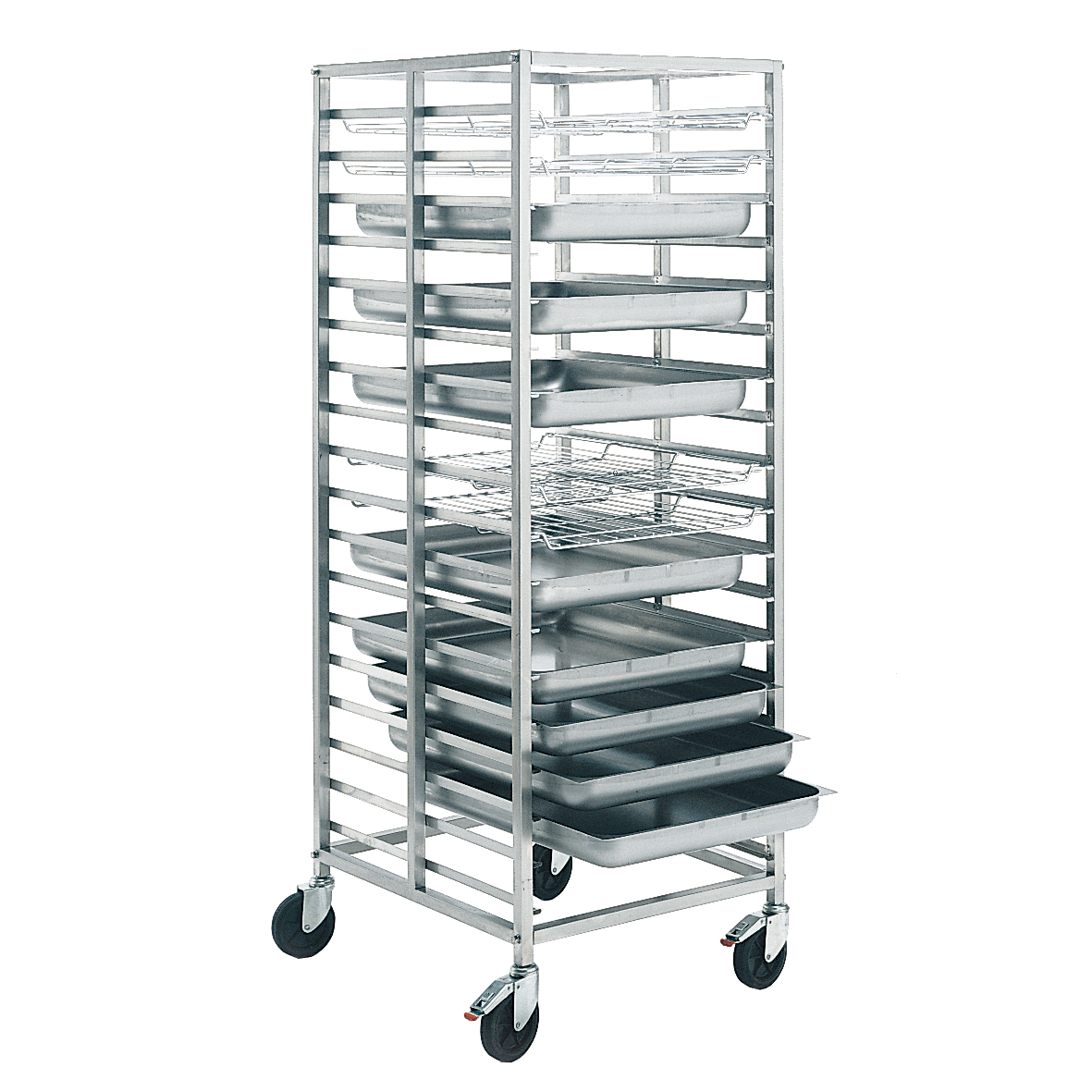

Multifunction blast chiller and freezer made of AISI 304 stainless steel. Production per cycle: 120 kg from +90°C to +3°C at product core in 90 minutes; 72 kg from +90°C to -18°C at product core in 240 minutes. Inner compartment useful for nr. 20 containers GN 1/1 or 60x40 cm trolley. LCD control panel board and encoder, multipoint probe. Without motor group, preset for remote cooling unit.


Blast freezing Outputkg 72
Max level/containersGN 1/1 - 60X40
Cooling powerW 5300
Supplied core probeIFR Multipoint
Defrosting typeelectric
Blast chilling Outputkg 120

Working voltage400V 3N ~ 50 ÷60 Hz
Net Weight280 kg
Gross Weight380 kg
Packing Width123 cm
Packing Height248 cm
Packing Depth142 cm
Width105 cm
Height226 cm
Depth125 cm
Electric Power3,6 kW
Electric supply height230 cm
Dimensions105x125x226 cm
Packing123x142x248 cm
